Notes and Study Materials

Types of Locks





There are different types of Locks.

Binary Locks

A binary lock has only two states: locked (1) or unlocked (0).

If an object—that is, a database, table, page, or row—is locked by a transaction, no other transaction can use that object. If an object is unlocked, any transaction can lock the object for its use. Every database operation requires that the affected object be locked. As a rule, a transaction must unlock the object after its termination. Therefore, every transaction requires a lock and unlock operation for each data item that is accessed. Such operations are automatically managed and scheduled by the DBMS; the user does not need to be concerned about locking or unlocking data items. (Every DBMS has a default locking mechanism. If the end user wants to override the default, the LOCK TABLE and other SQL commands are available for that purpose.)

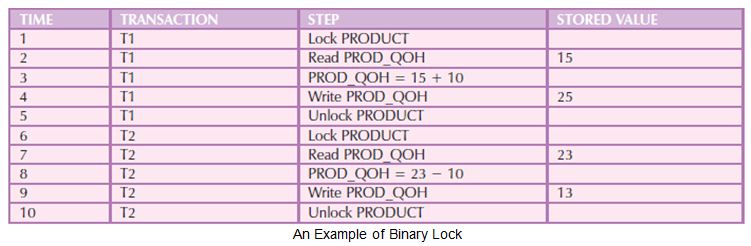

The binary locking technique is illustrated in the following table, using the lost updates problem. Note that the lock and unlock features eliminate the lost update problem because the lock is not released until the WRITE statement is completed. Therefore, a PROD_QOH value cannot be used until it has been properly updated.

However, binary locks are now considered too restrictive to yield optimal concurrency conditions. For example, the DBMS will not allow two transactions to read the same database object even though neither transaction updates the database, and therefore, no concurrency problems can occur. The concurrency conflicts occur only when two transactions execute concurrently and one of them updates the database





Binary locks

Shared/Exclusive Locks:


The labels “shared” and “exclusive” indicate the nature of the lock. An exclusive lock exists when access is reserved specifically for the transaction that locked the object. The exclusive lock must be used when the potential for conflict exists. A shared lock exists when concurrent transactions are granted read access on the basis of a common lock. A shared lock produces no conflict as long as all the concurrent transactions are read-only. A shared lock is issued when a transaction wants to read data from the database and no exclusive lock is held on that data item. An exclusive lock is issued when a transaction wants to update (write) a data item and no locks are currently held on that data item by any other transaction. Using the shared/exclusive locking concept, a lock can have three states: unlocked, shared (read), and exclusive (write).

As shown in the above table, two transactions conflict only when at least one of them is a Write transaction. Because the two Read transactions can be safely executed at once, shared locks allow several Read transactions to read the same data item concurrently.



For example

if transaction T1 has a shared lock on data item X and transaction T2 wants to read data item X, T2 may also obtain a shared lock on data item X. If transaction T2 updates data item X, an exclusive lock is required by T2 over data item X. The exclusive lock is granted if and only if no other locks are held on the data item. Therefore, if a shared or exclusive lock is already held on data item X by transaction T1, an exclusive lock cannot be granted to transaction T2 and T2 must wait to begin until T1 commits. This condition is known as the mutual exclusive rule: only one transaction at a time can own an exclusive lock on the same object. Although the use of shared locks renders data access more efficient, a shared/exclusive lock schema increases the lock manager’s overhead, for several reasons:



• The type of lock held must be known before a lock can be granted.

• Three lock operations exist: READ_LOCK (to check the type of lock), WRITE_LOCK (to issue the lock), and UNLOCK (to release the lock).

• The schema has been enhanced to allow a lock upgrade (from shared to exclusive) and a lock downgrade (from exclusive to shared).

Although locks prevent serious data inconsistencies, they can lead to two major problems:

• The resulting transaction schedule might not be serializable.

• The schedule might create deadlocks. A deadlock occurs when two transactions wait indefinitely for each other to unlock data. A database deadlock, which is equivalent to traffic gridlock in a big city, is caused when two or more transactions wait for each other to unlock data.

Fortunately, both problems can be managed: serializability is guaranteed through a locking protocol known as two-phase locking, and deadlocks can be managed by using deadlock detection and prevention techniques. Those techniques are examined in the next two sections.
